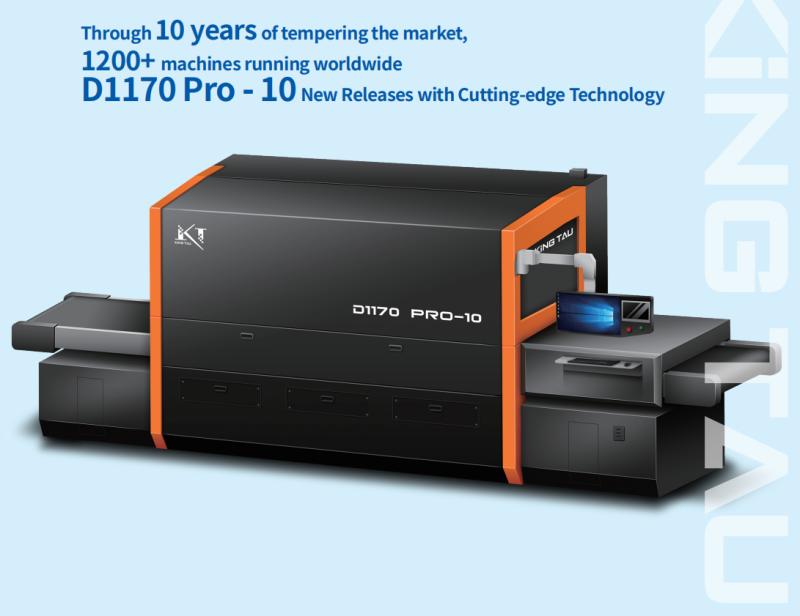

D1170-10 8G Ultimate ceramic tile inkjet printer
♦ Dual core Cortex-A9 CPU with a clock speed of 833MHz (equivalent to iPhone 6s)
♦ The CPU operation is powered by the latest Intel Cyclone ® Module composition of V SoC FPGA driver
♦ The board is equipped with up to 8GB of memory, laying the foundation for real-time processing and storage of large amounts of data in large drafts
♦ The hardware system can work normally in an environment of 0-85 ° C
♦ Each nozzle driver board runs an independent embedded Linux system. ※ Special reminder for working environment requirements: ☆ Blank temperature: below 40 ℃
☆ The base glaze has good moisturizing properties and does not powder
The inkjet room is divided into three sections, easy to maintain insulation and requires constant cleaning. The room temperature is between 23 ℃ and 28 ℃
☆ The glaze line speed is consistent with the inkjet printer
☆ Install the center guide brick outside the inkjet printer
The inkjet room should be kept away from vibration sources
☆ It is recommended to replace the ink filter every 3 to 4 months (original)
☆ Max printing system with up to 16 levels of grayscale processing capability, delicate and level balanced
☆ New printing control system, single nozzle independent CPU, independent 8GB memory, in line with the trend of large bricks and large images
☆ Spray hole blockage compensation function, avoiding the impact of wire pulling on product quality
☆ Optimization of the overall mechanism, further evolution of environmental protection and human-computer interaction
☆ High meteor internal circulation ink path system improves ink path stability by 35% compared to previous ones
☆ Ink path fully closed-loop control, maintaining flow rate balance, compatible with light and dark products
☆ Ink path configuration with water bath heating, supporting glaze effect ink high flow printing
☆ High flow rate of 130ml/minute circulation is more suitable for ceramic ink inkjet printing, stable printing

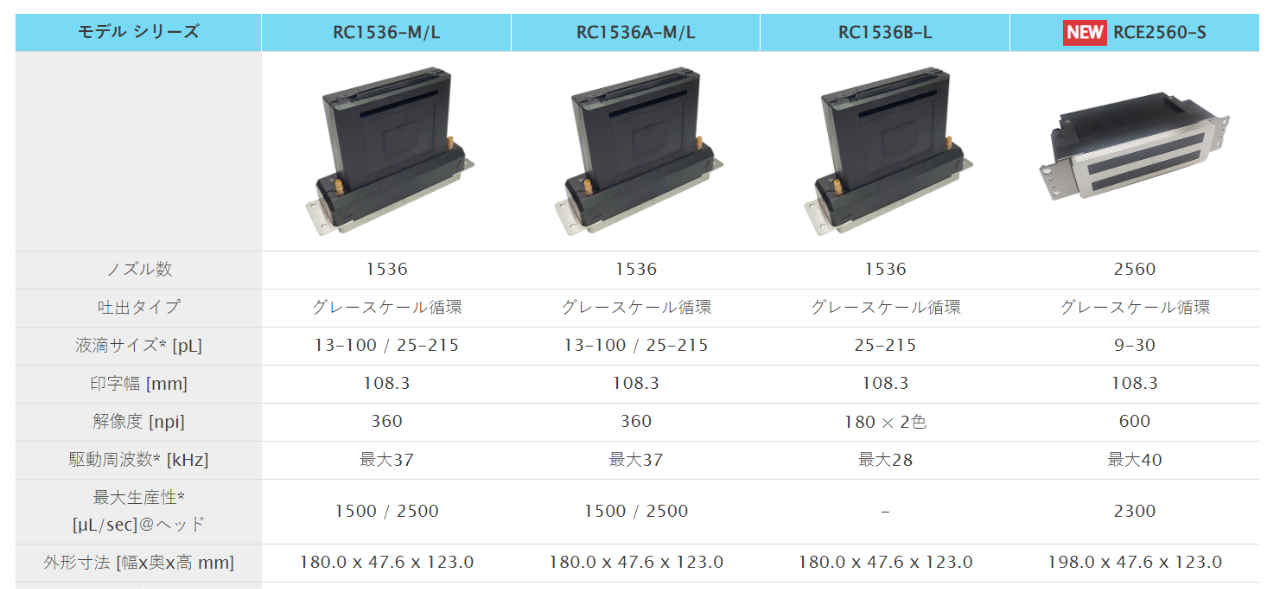

MAX RC1536 / MAX RC1356L
☆ Four types of driving waveforms are available: fine, standard, large ink volume, and super large ink volume
☆ Single nozzle with a printing width of 108nm
☆ Minimum ink droplet size of 13pl, displaying delicate printing accuracy
☆ Maximum 133pl ink droplets, a powerful tool for producing dark bricks
☆ MAX RC1356L, RCH 1536L effect glaze, protective glaze ink greater than 45 grams per square meter (specific gravity 1300g/cm ³)
