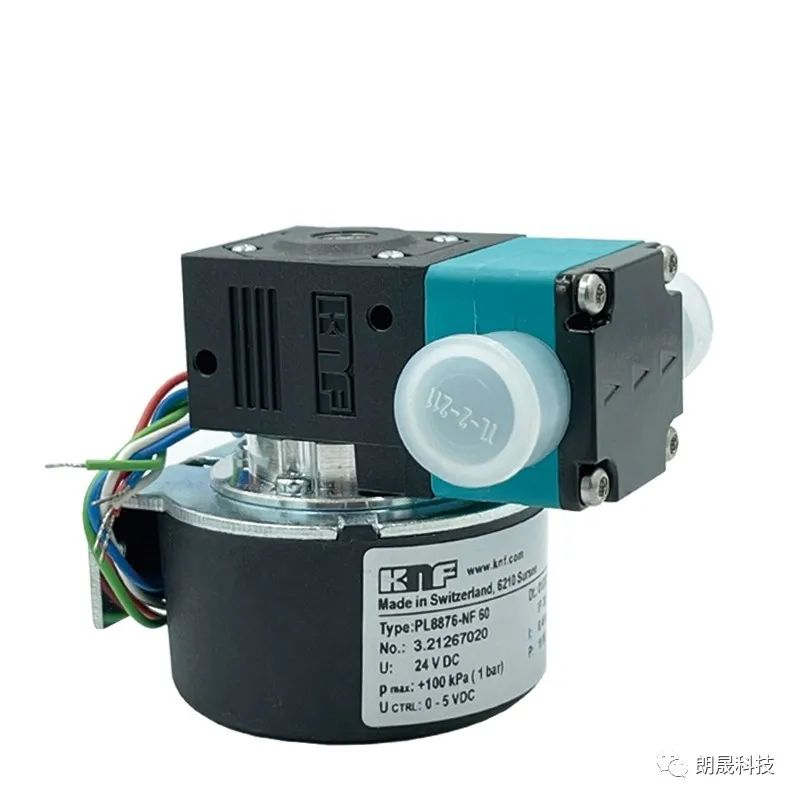

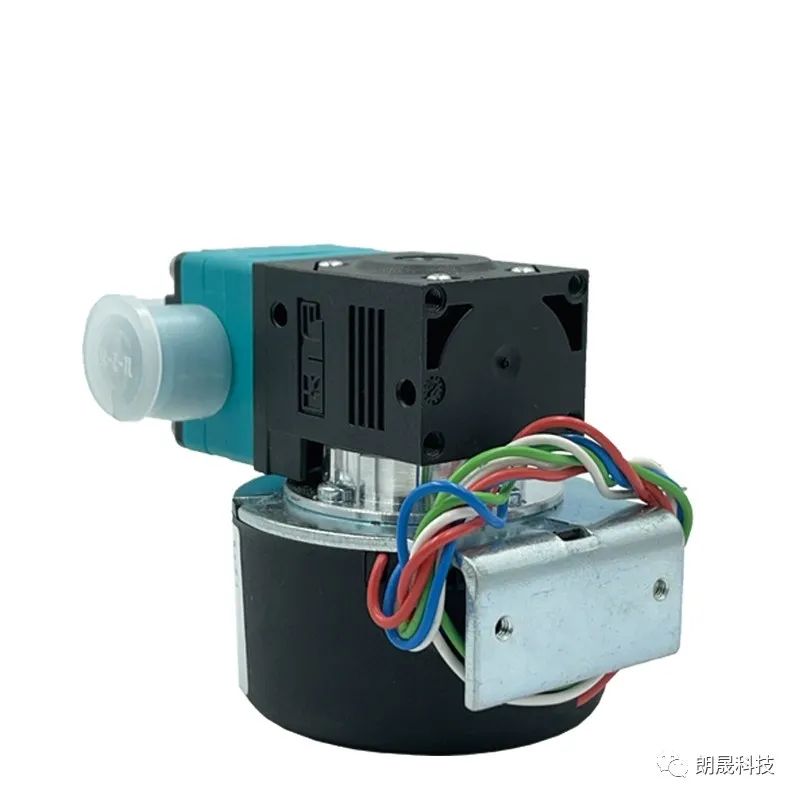

On the inkjet ink pump KNF PML12376 NF60 single head ink supply pump

KNF Group develops, produces, and sells high-quality diaphragm pumps and systems for gases, vapors, and liquids. KNF’s innovative diaphragm pump can be used as an OEM integrated pump, as well as in various fields such as process applications and laboratories.KNF-PML12376-NF60 is mainly used in the industrial field, and is frequently used in the inkjet printer industry. Currently, the most commonly used is the Meijia inkjet printer.

微信图片_20240518093646微信图片_20240518094004

Product parameters:

Liquid flow rate: 600ML/MIN
Maximum negative pressure: -45Kpa
Maximum hydraulic pressure: 0.6Mpa
Power supply voltage: DC 24V, DC 12V, DC 6V
Pump head material: PP
Diaphragm and valve disc: PTFE, EPDM, PTFE

Product features:

1. The fluid passing through will not overheat and there will be no harmful fluid discharged.
2. The flow rate can be adjusted by installing a regulating valve at the inlet or outlet to regulate the flow rate.
3. It has a self-priming function, which can work for long periods of time and can work continuously for long periods of time.
4. Small size, light weight, easy to install and move.
5. No lubrication required, and will not contaminate the environment due to issues such as dripping.
6. No dynamic seal, easy maintenance without leakage, and no dead points during operation.

Precautions for diaphragm pumps:

1. Effectively pass through particles with a diameter of 0.08mm and a density of 5%. If there are too many impurities in the liquid, please use a filter, otherwise blockages and other situations may occur.
2. Use the diaphragm pump correctly, handle with care, and prohibit falling.
3. Please use the indicated lead wire for wiring, as connecting the brushless motor leads incorrectly may cause the motor to burn out.
4. When using this product to transport toxic fluids, please do not return it directly to our company for repair to avoid safety hazards.
5. Please choose the correct pump components according to the usage environment to ensure that the medium conveyed by the pump head will not be corroded. For specific selection, please consult customer service directly.

If you want to consult our products, welcome to ask price, sent email to us: lemsun002@126.com.


Post time: May-18-2024
