On the inkjet ink pump KNF-NF60 ink supply micro diaphragm pump

KNF Company

KNF Group develops, produces, and sells high-quality diaphragm pumps and systems for gases, vapors, and liquids. KNF’s innovative diaphragm pump can be used as an OEM integrated pump, as well as in various fields such as process applications and laboratories.

Product parameters

Liquid flow rate: 600ML/MIN

Maximum negative pressure: -45Kpa

Maximum hydraulic pressure: 0.6Mpa

Power supply voltage: DC 24V, DC 12V, DC 6V

The pump head material is PP

The diaphragm and valve plate are made of PTFE, EPDM, and PTFE.

KNF diaphragm pump products

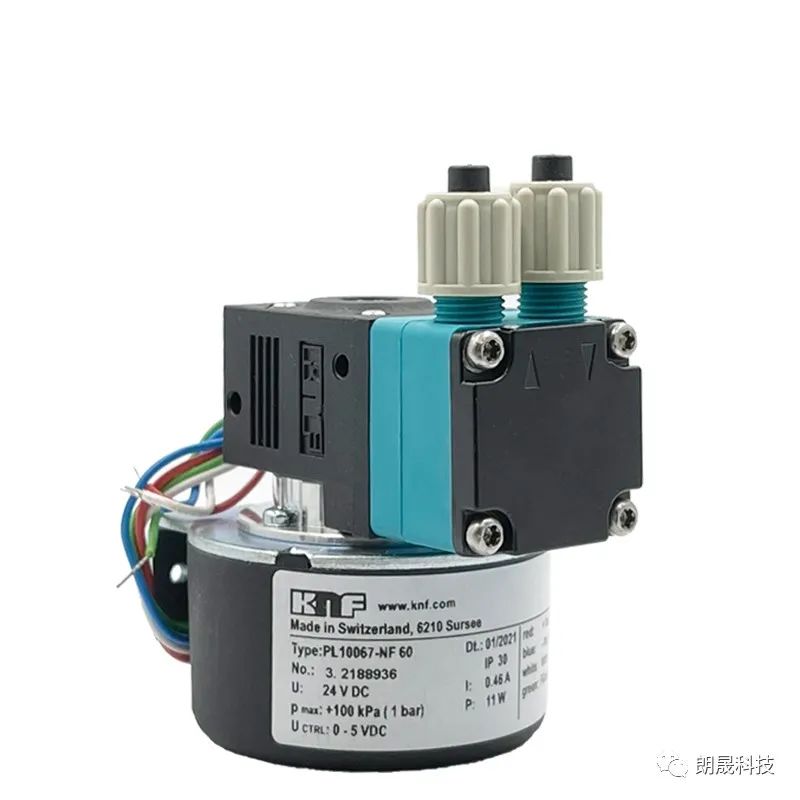

This issue mainly focuses on KNF-PL10067-NF60, a miniature pump in the KNF diaphragm pump

微信图片_20240407115445

Product features

1. The fluid passing through will not overheat and there will be no harmful fluid discharged.

2. The flow rate can be adjusted by installing a regulating valve at the inlet or outlet to regulate the flow rate.

3. It has a self-priming function, which can work for long periods of time and can work continuously for long periods of time.

4. Small size, light weight, easy to install and move.

5. No lubrication required, and will not contaminate the environment due to issues such as dripping.

6. No dynamic seal, easy maintenance without leakage, and no dead points during operation.

Field of use

KNF-PL10067-NF60 is mainly used in the industrial field, and is frequently used in the inkjet printer industry. Currently, there is hope for inkjet printers, Jingtao, Xinjingtai, Tiangong Ferrari, Duster and other inkjet machines to be reused.

If you want to consult our products, welcome to ask price, sent email to us:lemsun002@126.com.


Post time: Apr-07-2024
