Do you know about the Seiko series inkjet print heads?

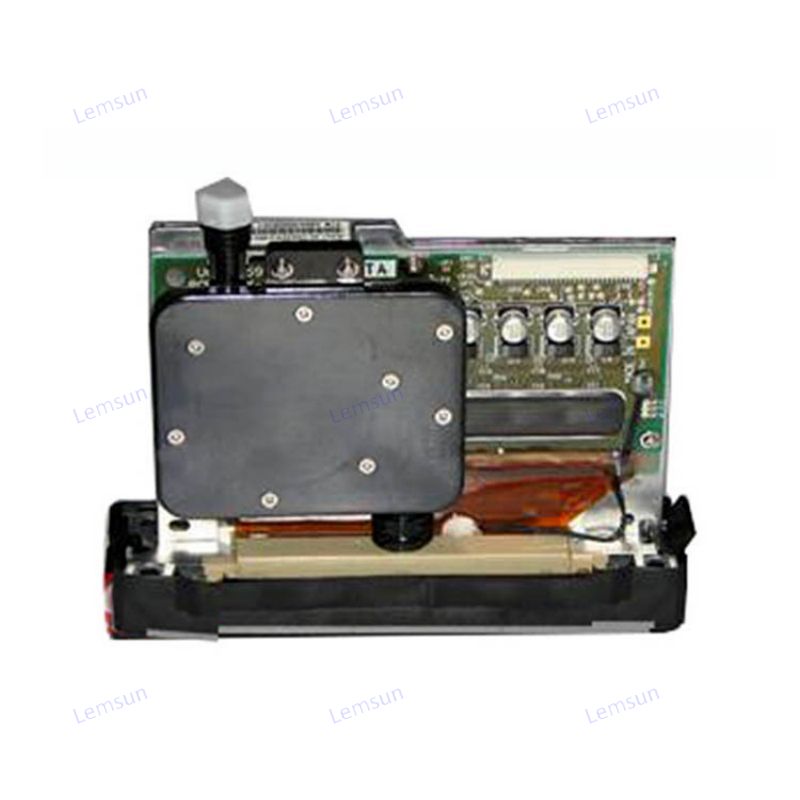

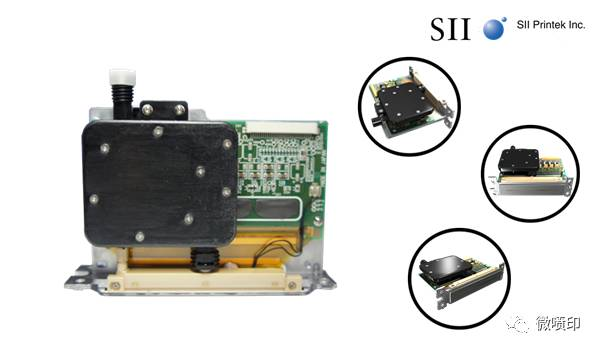

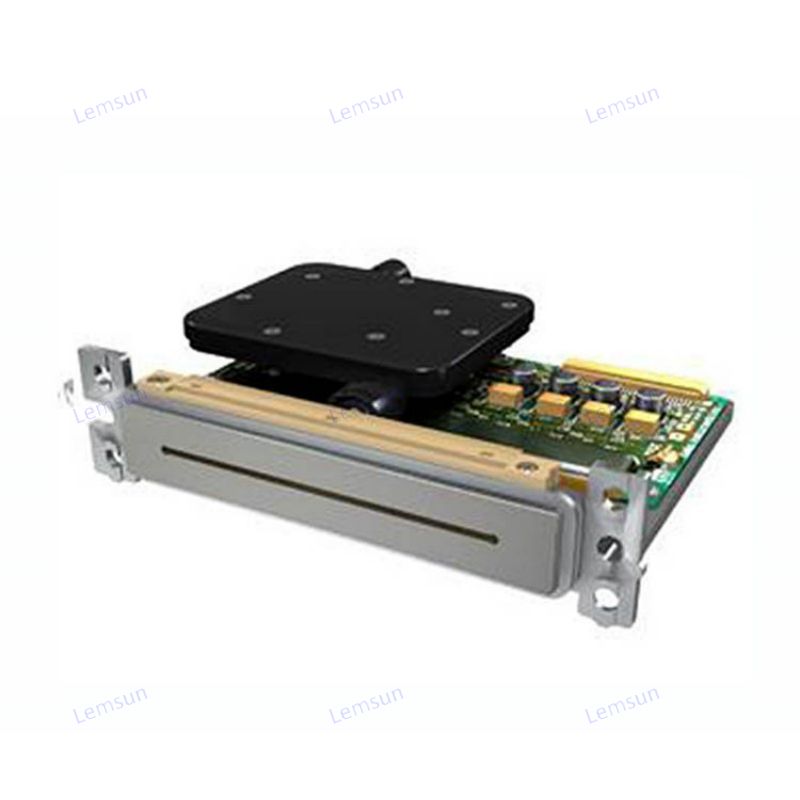

Seiko printhead SPT510-35PL

The SPT510-35PL nozzle has a nozzle width of 72mm, a physical accuracy of 180DPI, and an ignition frequency of 8.29KHZ. Since its listing in 2005, it has led China’s advertising printing industry into the era of high precision. In terms of market share and customer reputation, it has always been ahead of similar products in the advertising spray painting niche market.
Superior performance
With a nozzle width of 72mm, a physical resolution of 180DPI, and an ink droplet size of 35PL, it can adapt well to the requirements of the advertising printing market for fast speed, high accuracy, multiple coverage, and high color saturation;
Stable inkjet control
On demand inkjet, the nozzle is equipped with an ink bag, a simple liquid pathway, and a built-in filter screen to ensure continuous and stable inkjet printing through multiple channels;
Good user reputation
After 8 years of end-user testing, more and more users are choosing to use this model of nozzle;
Number of nozzles: 510
Nozzle width: 71.8mm
Physical accuracy: 180DPI
Spray speed: 4.2m/s
Ignition frequency: 8.29 kHz
Ink droplet size: 35pl
Applicable inks: solvent, UV, and oil-based inks

图片112126284138_485075960

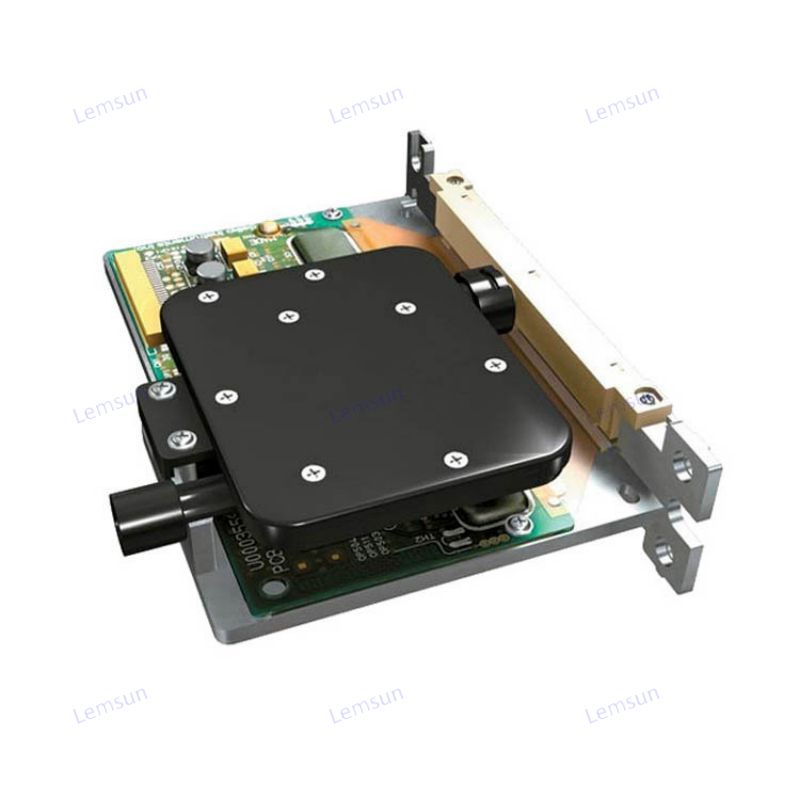

Industrial grade printing nozzle SPT510-50PL

The SPT510-50PL nozzle, as an extension of the SPT510 series nozzle, is positioned for users in high-yield advertising printing processing. We can provide stable, reliable, and highly flexible inkjet solutions for producing eye-catching promotional advertisements.
High capacity nozzle
72mm nozzle width, 50PL ink droplets, single nozzle printing 240X360DPI, color saturation can be achieved in 2 times, with an hourly output capacity of 80 square meters;
Excellent stability
Adhering to the excellent inkjet stability, reliable spray life, and high-quality image output of SPT510-35PL nozzle;
Powerful additional features
Internally equipped with an ink bag to enhance ink supply stability, a filter device to prevent clogging of inkjet, a real-time voltage control system to improve inkjet stability, and a TICKLING function to prevent clogging of the nozzle
Number of nozzles: 510
Nozzle width: 71.8mm
Physical accuracy: 180DPI
Spray speed: 4.2m/s
Ignition frequency: 6 kHz
Ink droplet size: 50pl
Applicable inks: solvent, UV, and oil-based inks

12092638202_48507596012055455754_485075960

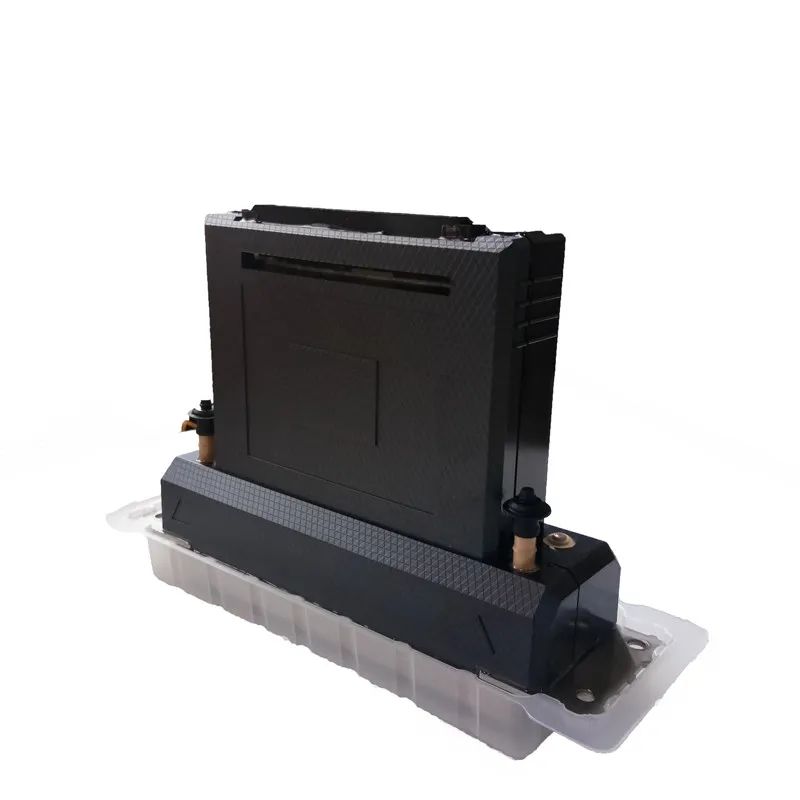

Industrial grade grayscale printing nozzle RC1536GS

The RC1536GS nozzle is designed for the extreme industrial inkjet printing field, featuring fast speed, high precision, and adaptability to various types of inks.
Grayscale&Variable Dot Printing Technology
Support eight level grayscale printing, capable of outputting ink droplets of different sizes from 13-100PL, with a single point ignition frequency higher than 37kHz, enabling the RC1536 nozzle to achieve high-speed, high-efficiency, and high-quality image output;
Built in EPROM memory
The nozzle has built-in EPROM memory, and users can set data according to their own needs to meet market diversification;
Internal circulation technology
It can effectively solve the sedimentation problem of special ink and eliminate ink bubbles.
Number of nozzles: 1536
Nozzle width: 108.3mm
Physical accuracy: 360DPI
Ignition frequency: single point 37kHz
Ink droplet size: 13-100pl, eight level grayscale
Jet speed: 7m/s
Applicable inks: solvent, UV, water-based, oil-based, and ceramic inks

SEIKO RC1536微信图片_20240521103104
